+93- List Price: $696,459
- MSRP: $748,881
- You Save: $52,422
-
Sleeps 10
-
3 Slides
-
Bunk Over CabBunkhouse
-
45ft Long
-
42,077 lbs
-
Ascent

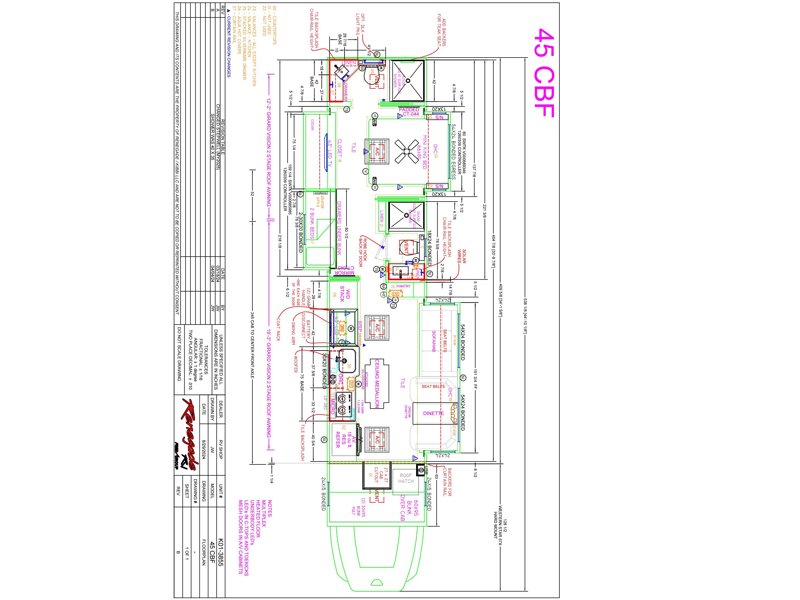

45CBF Floorplan
Specifications
| Sleeps | 10 | Slides | 3 |
| Length | 44 ft 10 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 5 in | Int Height | 7 ft 6 in |
| Interior Color | Ascent | Exterior Color | Audi Dark Grey |
| Hitch Weight | 32000 lbs | GVWR | 58000 lbs |
| Dry Weight | 42077 lbs | Cargo Capacity | 15923 lbs |
| Fresh Water Capacity | 150 gals | Grey Water Capacity | 75 gals |
| Black Water Capacity | 75 gals | Tire Size | Front: 315/80R22.5, Rear: 295/80R22.5 |
| Furnace BTU | 65600 btu | Generator | 12.5 Onan Quiet Diesel |
| Fuel Type | Diesel | Engine | Detroit DD16 |
| Chassis | Western Star 57X | Horsepower | 600 hp |
| Fuel Capacity | 120 gals | Number Of Bunks | 3 |
| Available Beds | Mini King | Torque | 1850 ft-lb |
| Refrigerator Type | French Door Residential w/Stainless Steel Doors | Refrigerator Size | 18 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Shower Size | 42"x35" Master, 36"x30" Mid | Number of Awnings | 2 |
| Axle Weight Front | 18000 lbs | Axle Weight Rear | 20000 lbs |
| Axle Weight Tag | 20000 lbs | LP Tank Capacity | NA |
| Water Heater Capacity | 100000 gal | Water Heater Type | Aqua Hot 650D Hydronic |
| AC BTU | 45000 btu | TV Info | LR 4K Smart LED TV, BR 4K Smart LED TV, Ext. 43" Smart LED TV |
| Awning Info | (2) Roof Mounted Girard 2 Stage Lateral Arm w/LED Lights | Washer/Dryer Available | Yes |
| Gross Combined Weight | 80000 lbs | Shower Type | Walk-In Shower |
| Electrical Service | 50 amp | VIN | 5KKHBZD1XSLVX5534 |
Description
Renegade Classic Super C diesel motorhome 45CBF highlights:
- Bath and a Half
- Sofa Sleeper
- Bunk Over Cab
- French Door Residential Refrigerator
If you're looking for a coach with more sleeping space and lots of conveniences, take a look at this Renegade Classic! There are two bunks the little ones will love, and the half bath is right across the bunks for nighttime use. The master bedroom includes a mini-king bed slide out, your own 4K Smart LED TV and a full rear bath. Any other guest you have can sleep on the sofa sleeper, booth dinette, or bunk over cab! Meals can be made in the stainless steel convection oven or on the two burner induction cooktop, and leftovers can go in the 18 cu. ft. French door residential refrigerator or kitchen pantry!
With any Renegade Classic Super C diesel motorhome toy hauler motorhome you will enjoy luxury and versatility at every turn! First, choose between four chassis options that include a Freightliner Cascadia, Volvo VNR/VNL, Western Star, or a Peterbilt! Then you can choose from three stylish decor options and a wide variety of floorplan layouts to fit your needs. Each coach includes "Super Sandwich" floor construction, a roof mounted lateral 2-stage lateral arm awning with LED lights, and frameless dual pane tinted windows with screens. You will find the Multiplex electrical system convenient when managing your units functions, and you'll stay powered up by the Onan quiet diesel generator, (2) 330ah AGM house batteries, and 3000-watt pure sine wave inverter! You will love the luxury interior with its grouted tile backsplash in the galley, memory foam mattress in the bedroom, and solid surface shower with wall tile inlay and a sliding glass door in the bath. There are also color rear and side view cameras for easy maneuvering and a rear air suspension for the smoothest ride around!
Features
Standard Features (2025)
Chassis and Cab
- Freightliner® Cascadia, Volvo® VNR/VNL, Western Star® and Peterbilt® Chassis with Product Specific Engine and Transmission Options and Specifications Available
- 20,000 lb. hitch, 7 Way Tow Connector with 2” Insert (Single Axle)
- 30,000 lb. Hitch, 7 Way Tow Connector with 2” and 2 5/16” Flip Ball Receiver, 2” Insert and Pintle Lock (Tandem Axle)
- Polished Aluminum Wheels with Center Caps
- Airliner Rear Air Suspension
- Auto Drain Valve for Air Brakes Reservoirs
- Premium Touch Screen Dash Radio with Bluetooth and Integrated Color Monitor (Chassis Specific)
- Color Rear and Side View Cameras
- Upgraded Cab Sound System (Chassis Specific)
- Premium Freightliner® Sound and Thermal Insulation Package
- LED Headlight with Bumper Integrated Fog Lights
- Power Windows and Door Locks
- Power/Heated Remote-Control Mirrors
- Air Ride Driver and Passenger Seat Pedestals with Swivels
- Soft Touch Driver/Passenger Seats with Armrests
- Auxiliary Air Chuck and Hose
Exterior
- FRP Cabover Front with 60” Cab Bunk
- Four-Point Hydraulic Leveling System with App
- Lighted Exterior Entry Door Assist Handle
- Keyless Entry
- Powered Folding Double Entry Steps
- Unpainted (White) or 3-Tier Paint Personalization Program
- Roof Mounted Girard® 2-stage Lateral Arm Awning with LED Lights with End Caps
- Slide Toppers with Covers
- Frameless Dual-Pane Tinted Windows with Screens
- Power Locking, Side-Swing Aluminum Compartment Doors with Single Handle Paddle Latches and Double Catch
- Steel Storage Compartments with Carpeted Lining
- Full-Width Rock Guard Mud Flap
Construction
- 5/8” FRP Roof and Exterior Walls (2 3/8” Total Wall Thickness)
- 1.5” High Density Foam Insulation in Sidewalls and Roof
- 1.5" x 1.5" Wood Reinforcement Structure
- “Super Sandwich” Floor Construction with Composite Underbelly Includes:
- 2” Welded Steel Floor Joist System Mounted to (6” and 1.5") Steel Longitudinal Floor Beams
- 3/4” Fir Plywood Deck Over 2 x 4 Wood-Framed Residential Floor with Thermal and Sound Deadening Insulation
Plumbing Systems
- 150 Gallon Fresh Water Tank
- 75 Gallon Gray Tank
- 75 Gallon Black Tank
- See-Level® Tank Monitoring System
- Full Maintenance Wet Bay
- Black Tank Flush System
- Fresh Water Fill – City Water Hookup
- Outside Faucet with Sprayer
- On Demand Water Pump
- Whole House Water Filtration System
Interior
- (3) Interior Décor Options
- Décor Coordinating Wood Valances with Fabric Inserts
- Double Roller Day/Night Shades (Manual)
- Soft Touch Padded Walls and Ceiling
- 12” x 24” Porcelain Tile Flooring Throughout
- Maple Hardwood Cabinetry
- 4-Wood Stain Color Options, 2-Finish Options
- Dovetail Drawers on Soft Closing Slides
- Framed Doors on Hidden Hinges
- Pantry with Hidden Drawers
- Hardwood Slide Fascia
- Satin Nickel Door Hardware
- Satin Nickel Kitchen Faucet
- Solid Surface Countertops Throughout
- Rectangular Single Bowl Undermount Kitchen Sink with Cover
- Accent Lighting at Toe Kicks
- Grouted Tile Backsplash
- LED Dimmable Lighting
- Memory Foam Mattress
- Ultraleather® Furniture Upholstery
- Convertible Booth Dinette with Storage
- Sofa Sleeper, Hide-a-Bed
- Loveseat with Storage (Select Floorplans)
Bath
- Maple Hardwood Vanity, Medicine, and Linen Storage Cabinets
- LED Vanity Light
- Deluxe Satin Nickel Bath Faucet and Adjustable Showerhead
- Satin Nickel Towel Bar, Towel Ring, and Toilet Paper Holder
- Porcelain Macerator Toilet with Push Button Flush
- Solid Surface Countertop with Integrated Sink
- Solid Surface Shower with Wall Tile Inlay and Sliding Glass Door
Appliances
- 18 Cu. ft. French Door Residential Refrigerator with Stainless Steel Doors
- Flush Mount 2-Burner Induction Cooktop
- 1.7 cu. ft. Stainless-Steel Convection Microwave Oven
- Aqua-Hot® 450D Hydronic Water and Zone Heating System
- (2 or 3) 15,000 BTU Roof A/C with Heat Pumps and Plumbed Condensation Lines (Varies by Floorplan/Gen Size)
- Ducted Air Conditioning
- MaxxAir® Deluxe Power Vents
- Central Vacuum System
- Pre-Wired and Plumbed for Optional Washer/Dryer
- Carbon Monoxide, LP and Smoke Detectors, and Fire Extinguisher
Electrical Systems
- 8KW Onan Quite Diesel Generator (Coaches under 40')
- 12.5KW Onan Quite Diesel Generator (Coaches 40' and Over)
- Automatic Generator Start System
- 50-Amp Electrical Panel
- Dual 3,000W True Sine Wave Inverters
- Transfer Switch with Surge Protection
- (2) 330AH AGM House Battery
- (3) 200W Solar Panels
- Multiplex Control System with Wi-Fi App Control and Touchscreen Switch Panels
- USB/USB-C Charging in Living Area, Bedroom, Kitchen, and Bunk Areas
- 50-Amp Power Retractable Shore Cord Reel
- 12V Holding Tank Heaters, Gray and Black Tanks
Entertainment Systems
- 43” or 50" 4K Smart LED TV in Living Area (Floorplan Specific)
- Soundbar Home Theater with Bluetooth Streaming and Wireless Subwoofer in Living Area
- 32” or 43" 4K Smart LED TV in the Bedroom (Layout Configuration Specific)
- Exterior Entertainment Center
- 43” Smart LED TV on Swivel
- Soundbar with Bluetooth Streaming
- USB Charging
- Winegard® Connect 5G Rooftop OTA Antenna with Wi-Fi and 5G Ready (SIM Card Req.)
Popular Options
- Various Alternative Floorplan Layout Configurations (See Dealer for Information)
- Underbody LED Lighting
- Second Lateral Arm Awning (N/A on 38CSB)
- Exterior 12V Scene Lighting-Bright LED
- Aerocap with Walkthrough Features (Cascadia/Western Star Only)
- Exterior Refrigerator/Freezer on Slide Tray (Floorplan Specific)
- Floor Heat Throughout
- Recessed 2-Burner Induction Cooktop with Polished Solid Service Covers
- Washer and Dryer Stack
- Motorized TV Slide at Bunk
- High Gloss Cabinet Finish
- Multi-Color Interior Under-Counter LED Lighting
- Starlink® Flat High-Performance with Wedge Mount (N/A with HD Trav’ler Pro)
- Requires Wi-Fi Ranger® Converge™ HD Rooftop Antenna ILO Winegard® Connect 5G
- Winegard® In-Motion Satellite System
- Winegard® Trav’ler Stationary HD Satellite System (N/A with Starlink®)
- Aqua-Hot® 600D System ILO Aqua-Hot® 450D
- (2) 270AH High-Capacity Lithium Batteries ILO AGM Batteries
- Additional 270AH High-Capacity Lithium Battery (Limit 2)
- Add Up to 3 More 200W Solar Panels (Quantity Varies by Floorplan and Options)
Please see us for a complete list of features and options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
