Floorplan - 2016 Newmar Ventana LE 4040
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $131,999
-
Sleeps 6
-
4 Slides
-
BunkhouseRear Bedroom
-
41ft Long
-
29,000 lbs

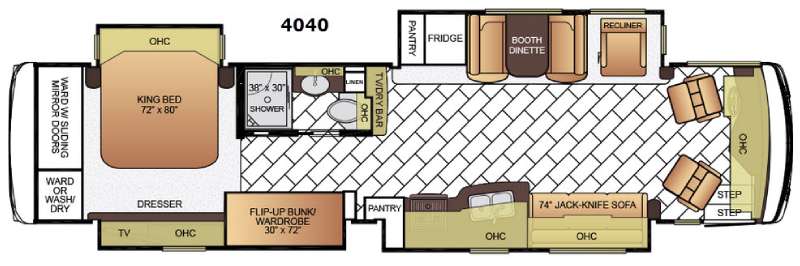

4040 Floorplan
Specifications
Sleeps | 6 | Slides | 4 |
Length | 40 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in | Int Height | 7 ft |
GVWR | 36400 lbs | Dry Weight | 29000 lbs |
Cargo Capacity | 7400 lbs | Fresh Water Capacity | 105 gals |
Grey Water Capacity | 65 gals | Black Water Capacity | 45 gals |
Furnace BTU | 54000 btu | Fuel Type | Diesel |
Miles | 31000 | Engine | 360HP Cummins ISB |
Chassis | Freightliner XCR | VIN | 4UZACHDT0GCHP1936 |
Description
The Ventana LE 4040 class A diesel motor coach by Newmar features a flip-up bunk, rear bedroom, and quad slides.
As you enter the motor coach, the living and kitchen space are opened up by dual opposing slides. First you will see the passenger and driver's chairs that rotate to allow more seating in this area to visit or relax with family and friends.
On the road side wall there is a slide out including a recliner, booth dinette, a refrigerator, and a pantry. A TV and dry bar are next to the slide.
On the opposite side of the coach is a slide out featuring a jack-knife sofa with overhead cabinets, a double kitchen sink, three burner range, additional overhead cabinets, plus a second pantry for more non-perishables is next to the slide.
The full bath includes a 38" x 30" shower, a toilet, sink, linen storage, and overhead storage.
Across from the bath is a slide out including a flip-up bunk with wardrobe below allowing another sleeping space and more room for guest's clothes. The bedroom dresser, overhead cabinet, and TV are also included in the slide.
Continue to the rear of the coach to the bedroom. There is a slide out king bed with overhead storage and nightstands on one side. On the opposite side is a dresser, overhead cabinets, and a TV that are mentioned in the slide above. Along the rear wall is a larger wardrobe with sliding mirror doors, and a smaller wardrobe or choose a washer and dryer instead.
There are plenty of standard features that you will want, plus much more!
Features
- Freightliner® XCR Chassis with 340 HP Cummins® ISB Diesel Engine on 34-37’ Floor Plans
- Freightliner® XCR Chassis with 360 HP Cummins® ISB Diesel Engine 40’ Floor Plans
- Chrome Wheel Simulators
- Comfort Drive Steering System with Power Column and Adjustable Controls
- Cruise Control
- Manual Tilt and Telescope Steering Column with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Anti-Lock Braking System
- Two 13.5M Penguin Central Air Conditioners
- Propane Furnace with Ducted Heat
- Dash Heater and Air Conditioner
- Propane Leak Detector
- Wall-Mounted Sensors for Heating and Air Conditioning
- Driver/Passenger Overhead Dash Fans
Appliances
- 30” Over the Range Microwave
- Recessed Three-Burner Range with Oven
- Norcold® 10 Cu. Ft. Refrigerator with Black Panel Front
- 10 gal. Gas/Electric Water Heater with Direct-Spark Ignition
- Prep for Two-Piece Washer/Dryer
- Countertop-Matching Flush Gas Cooktop Cover
Audio, Video & Accessories
- LED TV and DVD Player in Living and Bedroom Areas. TV Sizes Vary per Floor Plan*
- AM/FM/CD In-Dash Radio
- JBL® Premium Audio - Tuned 180-Watt DSP Amplifier with 6 Speakers
- Color Rearview Monitor System with Audio
- Side-View Cameras Displayed Onto Rear-View Monitor Screen
- Winegard® Digital Crank Up TV Antenna
- Satellite Prep on Roof
- TV Jack and 110-Volt Receptor in Door-Side Exterior Storage Compartment
Cabinets & Furniture
- Empire Maple Mitered Designer Glazed Cabinet Doors
- Concealed Hinges on Cabinet Doors
- Drawers with Full Extension Guides
- Fixed Pantry Shelves
- Dry Erase Message Board Inside Pantry Cabinet Door
- Polished Solid-Surface Countertop in Kitchen with Stainless Steel Sink and Flush Sink Covers
- Solid-Surface Countertops in Bathroom and Bedroom
- Flexsteel® Delux Leather Sofa and Driver/Passenger Seats
- Smooth-Top Mattress
- Lifts on Bed Top
- Front Seats with 6-Way Power
- Passenger Seat Work Station
- 6.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50-Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- Four 12-Volt House Batteries on Pullout Tray
- Battery Disconnect Switch for House Battery
- 1200-Watt Inverter
- Emergency Engine Start Switch
- Exterior Security Light on Doorside
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Overhead Cabinets
- Manually Operated Hold-To-Run Slideout Switch
- 12-Volt Auxiliary Receptacle on Dashboard
- USB Charger At Dinette & Bedroom Night Stand
- Engine Block Heater
- Cable TV Connection
- Lights in Exterior Storage Compartments
- Interior Courtesy Lights
- Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control and Defrost
- Entrance Door with Automatic Step
- Exterior Storage Compartments with Cargo Liner
- Assist Handle at Entrance Door
- Hydraulic Leveling Jacks
- Stainless Steel Exterior Trim Pieces on Front Cap and Grill Area
- Mud Flaps
- Rear Ladder
- Rear Hitch for Towing Car
- Undercoating
Interior
- Dash Panel Color Coordinated ABS
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Inlayed Six-Panel Design Interior Passage Doors
- Decorative Wall Art
- Padded Vinyl Ceiling
- Day/Night Pleated Window Shades & Lambrequins
- Mini Blinds in Kitchen and Bathroom Windows
- Vinyl Tile Floor in Kitchen, Bathroom and Living Area
- Carpeting in Bedroom and on Slide-out Floors
- MCD® Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
- Quilted Bedspread with Bed Scarf and Accent Pillow
- 10 Bc Fire Extinguisher, Smoke Detector and Carbon Monoxide Detector
Plumbing & Bath
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Systems Monitor Panel
- Fiberglass Shower with Glass Door
- Exterior Shower
- Water Filter for Entire Unit
- BriteTEK™ Roof with Walkable Decking
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- One-Piece Tinted Windshield
- Frameless Single-Pane Tinted Safety-Glass Windows
- Power Vent in Kitchen and Bathroom
- Skylight Above Shower
- Carefree® Travel’r™ Power Side and Entrance Door Awnings with Alumaguard
- Slide-out Awning Covers
- Two 15M Penguin Heat Pump Air Conditioners
- Norcold® 12 Cf. Four-Door Refrigerator with Icemaker
- Frigidaire® 10 Cf. Refrigerator, 2000-Watt Inverter with Six 6-Volt Batteries
- Whirlpool® 19.7 Refrigerator, 2000-Watt Pure Sine Inverter & Six 6-Volt Batteries
- 2000-Watt Modified Sine Inverter with Four 6-Volt Batteries
- 30” Convection Microwave Oven with Three Burner Cooktop
- Whirlpool® Two-Piece Stacked Washer & Dryer
- Air Horns
- 32” LED TV in Front Overhead
- Winegard® Automatic Dome Satellite Dish
- Sony® Surround Sound System with Subwoofer
- High Definition Component Wiring with Blu-ray/DVD Player
- Sienna Maple Mitered Designer Glazed Cabinet Doors
- Astoria Maple Mitered Designer Glazed Cabinet Doors
- Combination Desk with Buffet Dinette Table, 2 Fixed & 2 Folding Chairs
- Off-Door Side Hide-a-Bed with Air Mattress
- Off-Door Side Hide-a-Bed with Air Mattress
- Plush Pillow Top Mattress
- Sleep Number® Deluxe Air Mattress
- Sleep Number® Premier Air Mattress
- Extenda L-Sofa on Off -Door Side
- Door-Side Fold and Tumble Sofa with Air Mattress
- Power Flip-Up sofa in Bed Base with Sleep Number® Air Mattress
- Power Incline Retracting Bed Base with Sleep Number® Air Mattress
- Power Incline Head of Bed with Sleep Number® Air Mattress
- 8.0 Kw Onan® Diesel Quite Series Generator
- Automatic Generator Start on Low Battery or Temperature Setting
- Laminate Plank Floor in Place of Vinyl Tile
- Bathroom Floor Extended into Bedroom Area
- MCD® Window Shades
Construction
- One-Piece Molded Fiberglass Roof
- Polar Pak R-19 Batten Insulation in Roof
Windows, Awnings & Vents
- Frameless Double-Pane Tinted Safety Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
